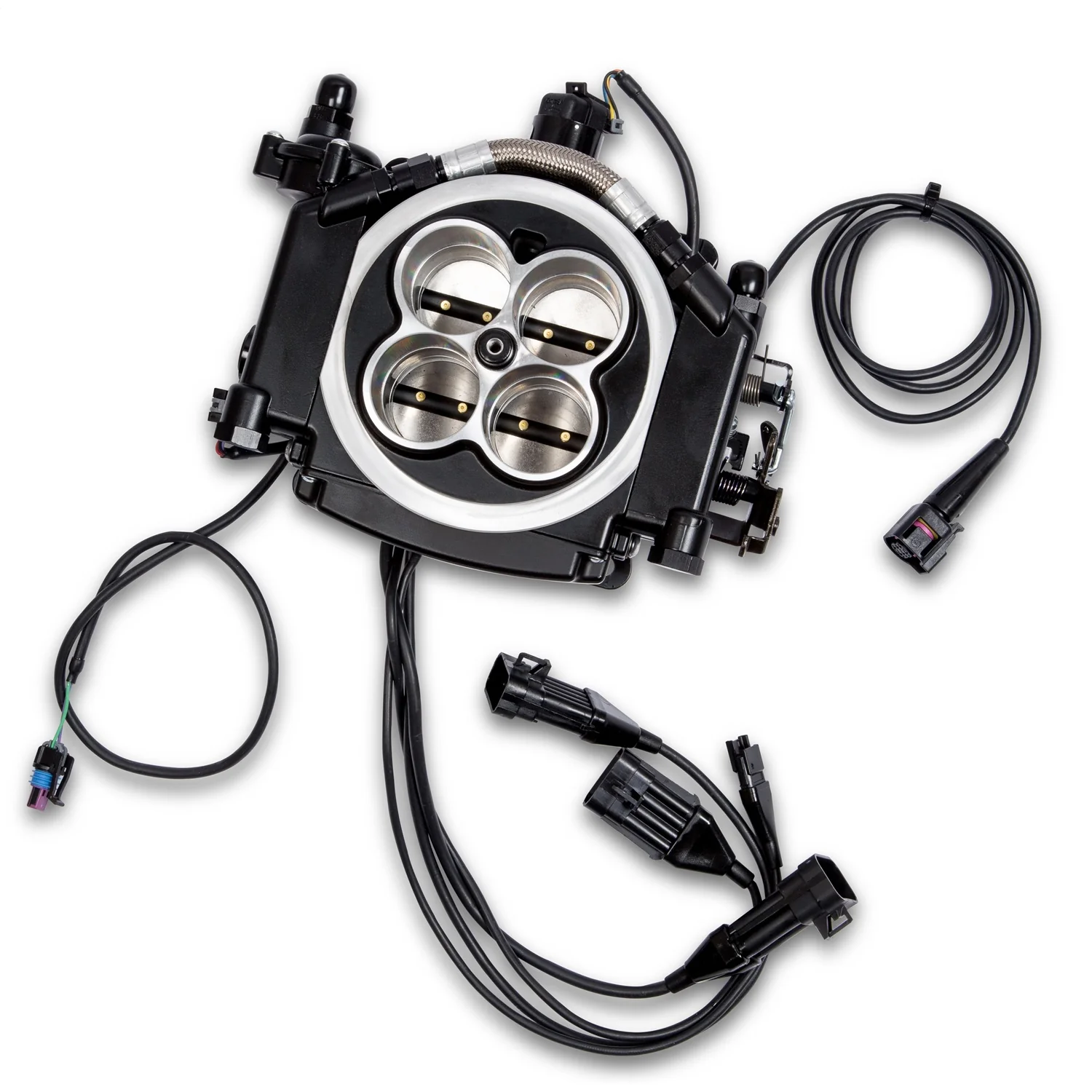

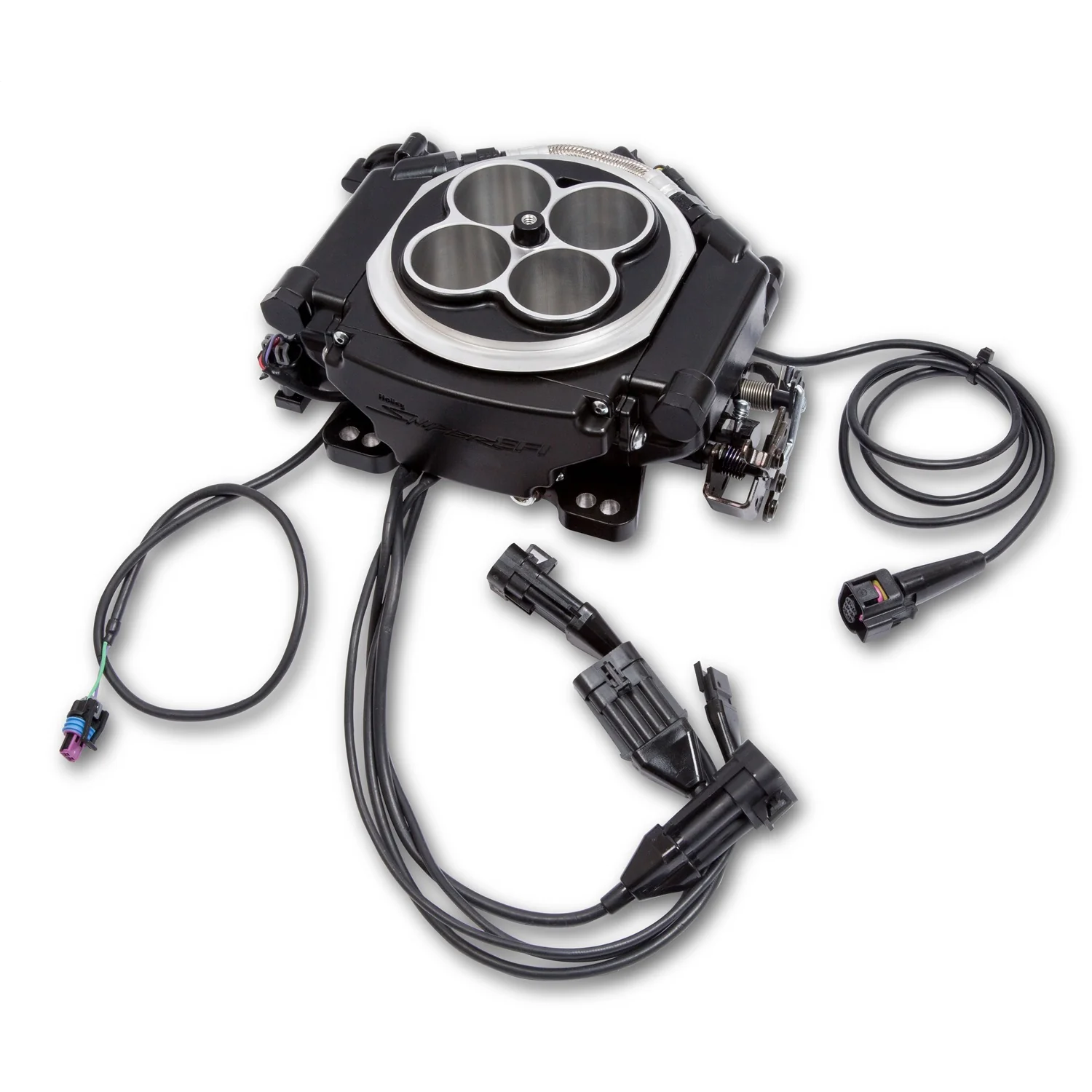

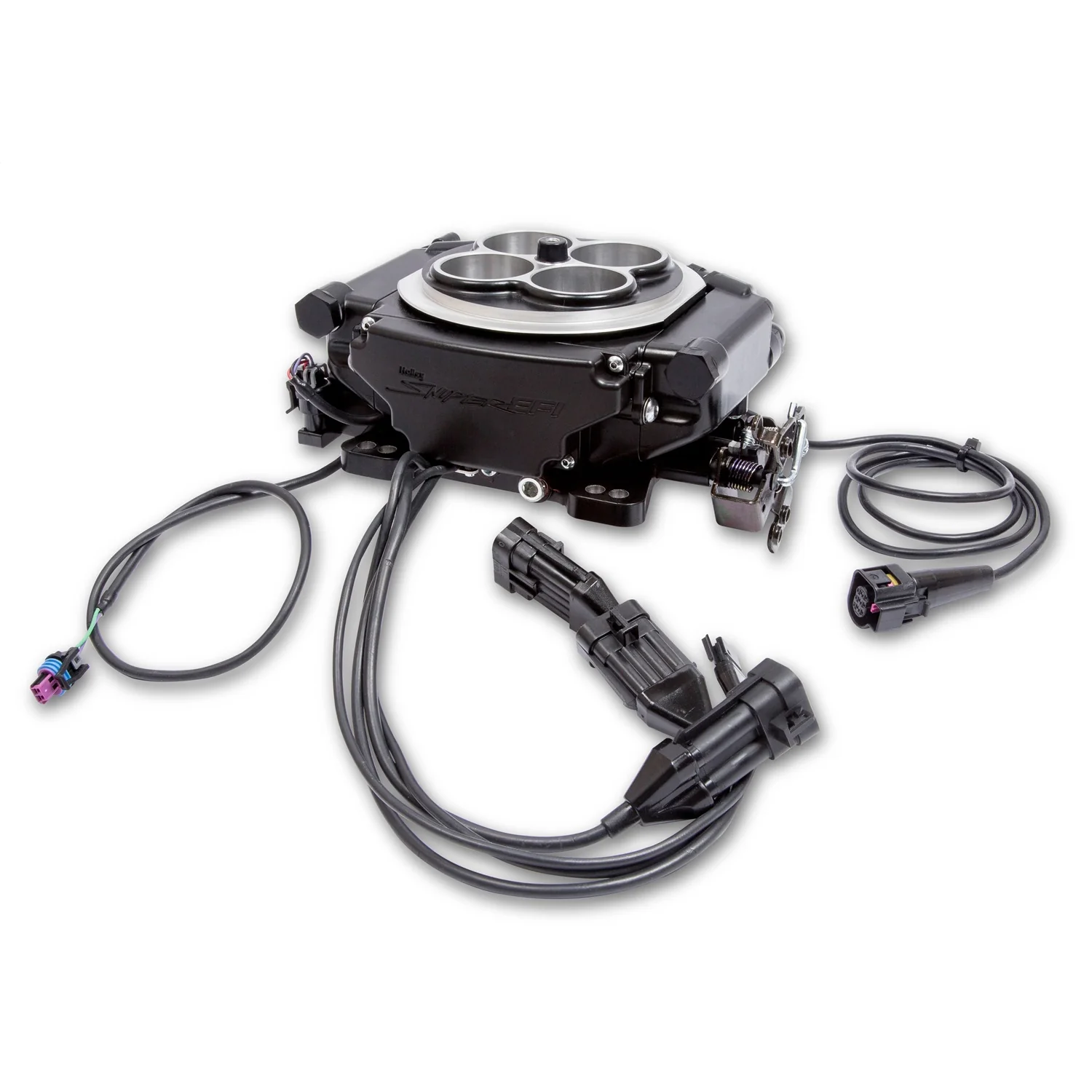

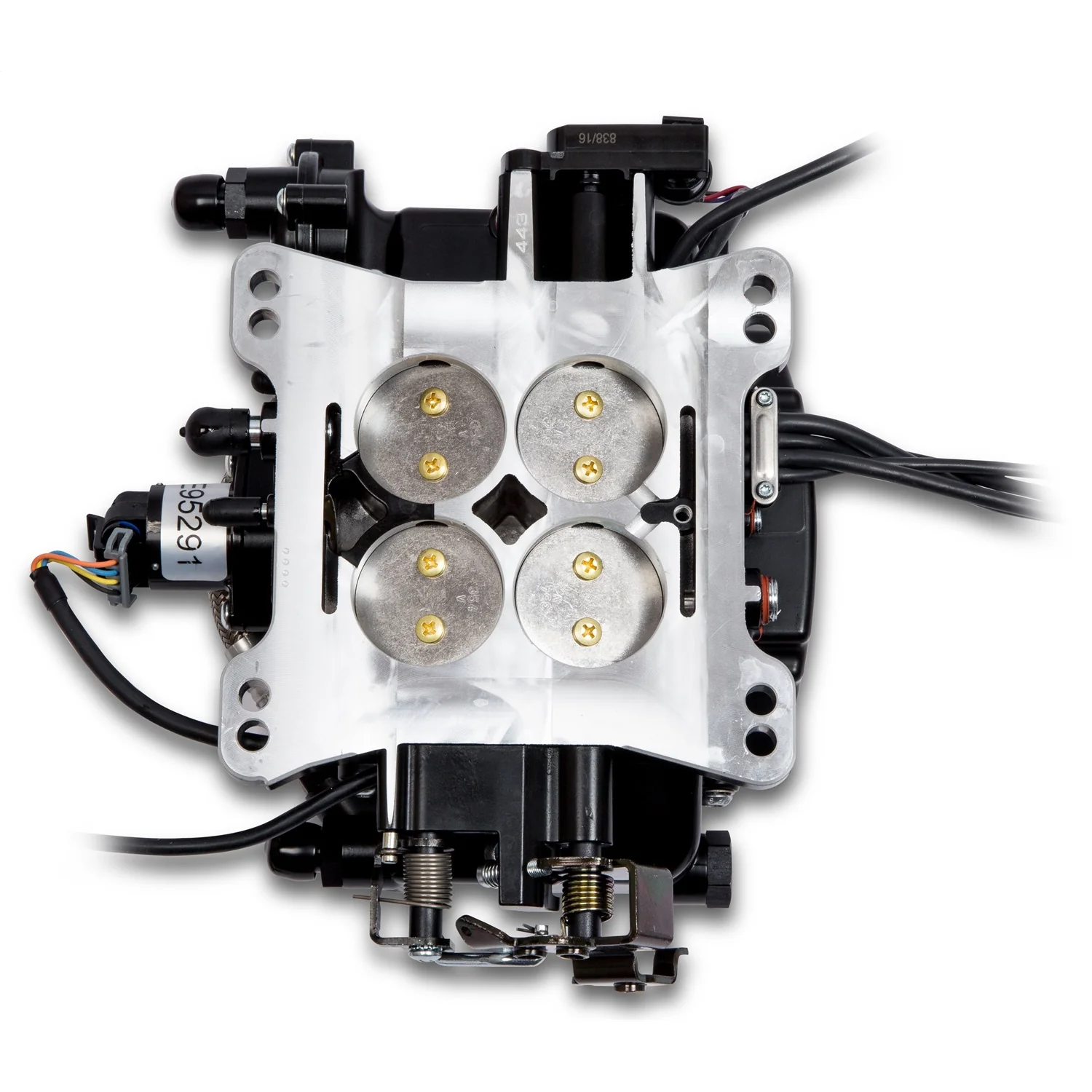

Introducing Sniper Super Sniper EFI! Looking to convert your blow thru carbureted turbo engine to EFI? Look no further than Sniper for the Super Sniper 4150 EFI systems featuring 8, 100LB/HR Fuel Injectors capable of supporting up to 1250 HP on forced induction or dry nitrous applications. Is your combination not producing that much horsepower? No problem, Sniper also offers a 650 HP four injector version for lower horsepower applications with a power adder or someone just needing additional sensor inputs. Did we mention the Super Sniper also has full nitrous control built-in? Thats right, no need for a separate nitrous controller! Every Super Sniper EFI system also comes with a USB to CAN tuning cable, as well as free downloadable Sniper EFI Software to give you unlimited control of your engine.

Features:1250 HP version features eight 100 Lb/Hr Injectors (Forced Induction)

The 800 CFM Main Body will support 700 Horsepower Naturally Aspirated

Compatible with Draw thru or blow thru forced induction applications

Built-in Single stage progressive nitrous control

Programmable inputs and outputs

Integrated ignition timing control for precise timing curves

Only 4 Wiring Connections Required! (Battery +, Battery-, Switched Ignition & RPM)

Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI) for N/A or Nitrous applications

Self-tuning ECU means you dont have to be a computer/tuning wiz to have EFI!

High-Resolution Full Color Touchscreen for initial Setup, Tuning, and Gauge Displays

Simple Calibration Wizard (Answer a few questions about your engine, and it creates the base map, then starts tuning on its own!) - NO laptop required!

The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!

OEM Style TPS/IAC and fuel pressure regulator, for years of dependable service

Included clamp-on oxygen sensor kit ensures a leak-free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange

Throttle body mounted ECU “ no extra boxes to mount

USB to CAN Communication cable included for easy laptop tuning of advanced controls

Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds - (Spread Bore Sealing Plate Part #9006 recommended)

Compatible with Sniper EFI analog gauges and electronic dashes

Patent Pending

SPECS: Brand: Sniper EFI

CFM: 800

Emission Code: 3

Finish: Black Ceramic

Height: 3.28"

Injector Size: 100 lb/hr @ 58.5 PSI

Inlet / Outlet Size: 9/16-18 Female O-Ring (AN 6)

MAP Sensor: 2.5Bar

Max Horsepower Rating: 1250 Forced Induction

Product Type: Sniper 4BBL TBI Kits

Throttle Bore: 1.6875 (1 11/16ths)

Transmission: 700R4/200R4

TH350

Part Number: 550-513

Product Description:

Fuel Injection

Super Sniper EFI

Throttle Body

Square Bore

Aluminum

Black Ceramic

Kit

Sniper brings high-quality fueling products to the masses. Featuring everything from fabricated intake manifolds, high-performance plumbing parts, fuel tanks, pumps and regulators, and the Sniper EFI line of self-tuning fuel injection systems, with Sniper, you can count on high-quality performance without the high-end price!
