Holley LS Hi-Ram Modular Intake System 300-116 LS3/L92 - EFI Hi-Ram - w/92mm. Throttle Body

Outstanding Power Potential

Aggressive and Bold Race Styling

Broad Power Range

Vehicle Applications:

2007-2008 GMC Yukon

2008-2013 Chevrolet Corvette

2007-2008 Cadillac Escalade ESV

2007-2008 Cadillac Escalade

2010-2015 Chevrolet Camaro

2009-2009 Pontiac G8

2008-2008 Hummer H2

2008-2008 Chevrolet Tahoe

2014-2017 Chevrolet SS

2007-2008 Cadillac Escalade EXT

2007-2008 GMC Sierra 1500

2007-2008 GMC Yukon XL 1500

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

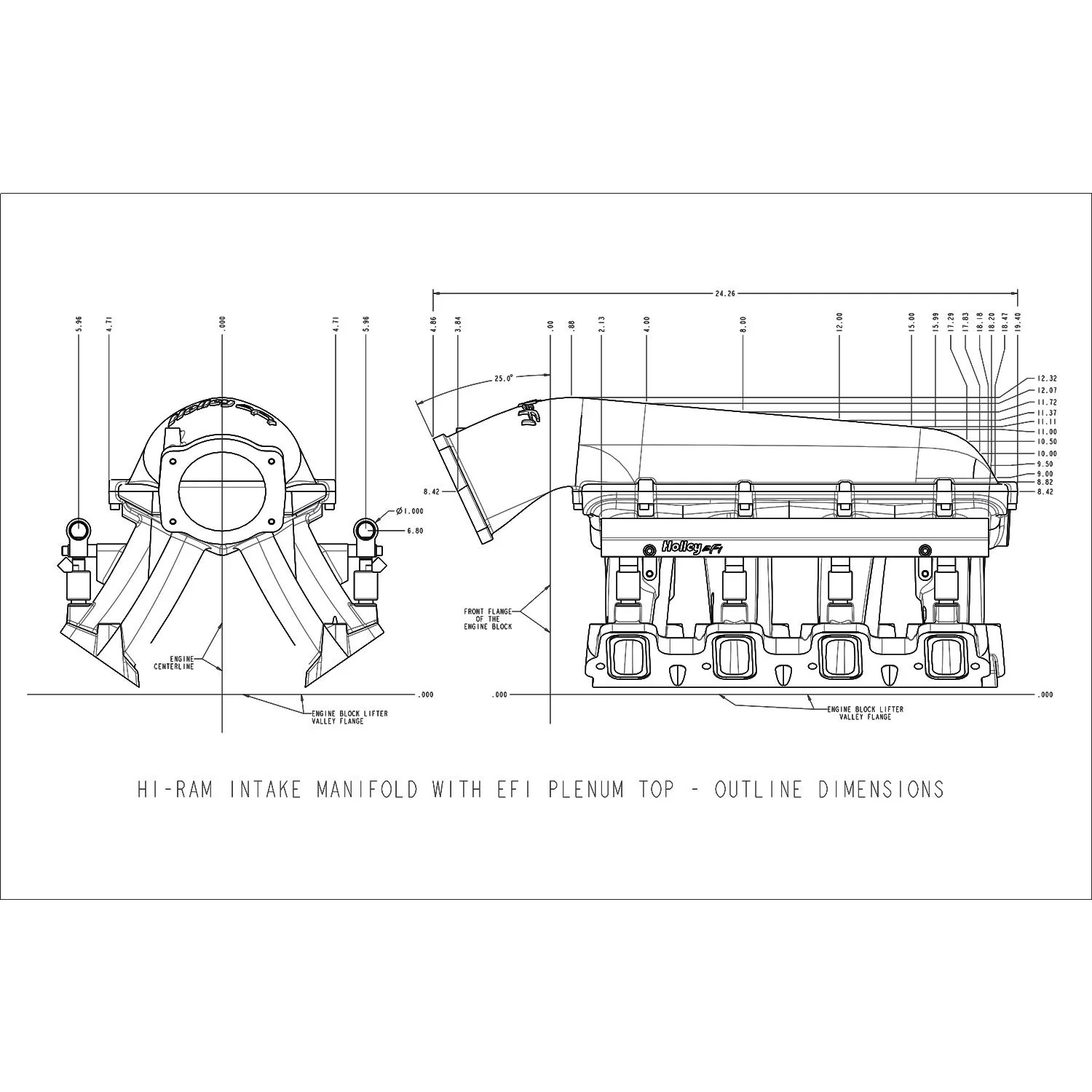

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

Total Height with 92/102mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.

Port Size - 2.49" Height x 1.21" Wide

Mounting Flange Gasket Type - Standard LS3 Molded O-Ring

Plenum Top Gasket Type - 3/32" Round O-ring Cord

Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)

Runner Length - 6.50", As-Cast Runner Cross-Sectional Area - Tapered 4.25 in┬▓ to 2.77 in┬▓

Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM

ΓÇó Cast aluminum construction.

ΓÇó Intended for use on naturally aspirated or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Product Description:

Intake Manifold

Hi-Ram EFI

92 mm Throttle Body Flange

Multi Port

Aluminum

Natural

LS3 / L92

GM LS-Series

Kit
